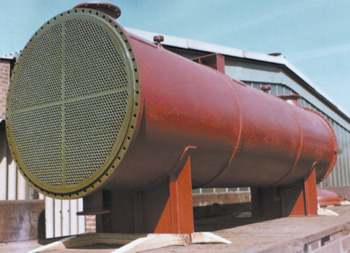

| circulation water
condenser, ordered by Fertilizer Plant, Kuwait |
|
|
| |
|

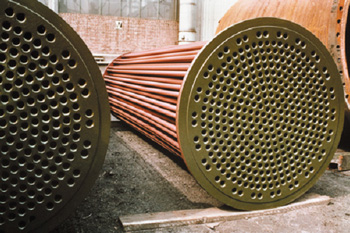

| some tube bundles
(shell- and tube-side coated) |
|
|
| |
|

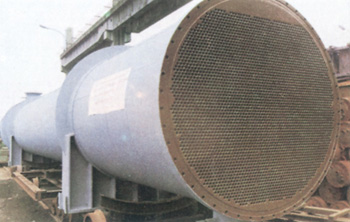

| heat exchanger
(tube-side coated), ordered by
Erdolraffinerie Lingen, Germany
|
|
|
| |
|
| condenser (tube-side
coated), ordered by BASF AG, Germany |
|
|
| |
|

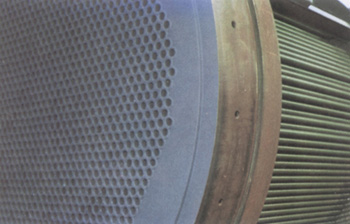

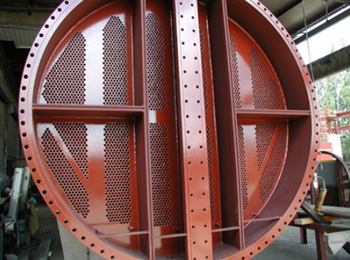

| condenser after
tube-side coating |
|
|
| |
|

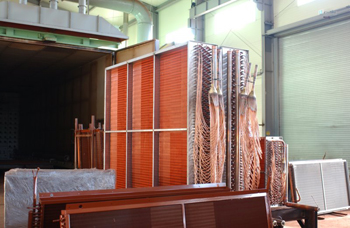

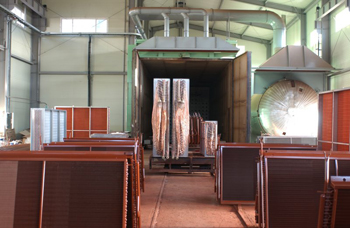

| air cooler (tube-side
coated), odered by Caltex, Germany |
|
|
| |
|

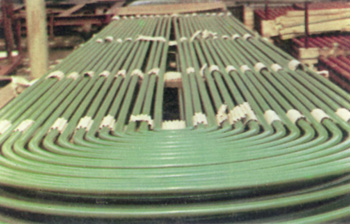

| shell-side coating
of U-tube bundle |
|
|
| |
|

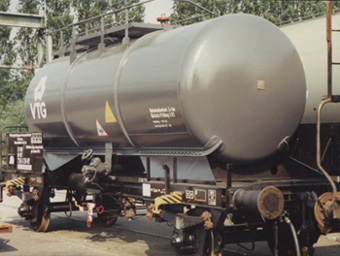

| heat cured coating
Si 14E of railway container |
|
|
| |
|
| |
|
| |
|

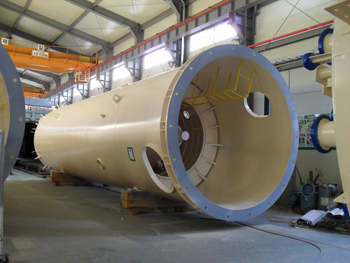

| posco carbon filter coating |
|
|
| |
|

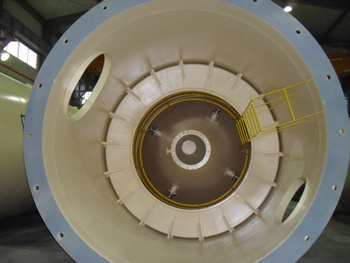

| posco carbon filter coating |
|
|
| |
|
| |
|
| |
 |
SAEKAPHEN
material
type |
colour |
surface |
dry film thickness
μ |
density
g/㎥ |
solid vol-
ume ltr./
100kg |
hardness
(konig)
lmp./sec. |
resistance |
field of application
|
| Si 14 E |
dark-green |
hydrophob,
smooth |
200 |
1,39 |
27,41 |
190 |
high acid to slightly alkaline,
salt solutions, coling water,
gases, organic liquids |
heat exchangers, air coolers,
condensers, evaporators, tanks |
| Si 14 EG |
red-brown |
matte |
250 |
1,30 |
29,32 |
134 |
water vapour diffusion, slightly
acid a, alkaline liquids
and vapour |
heat exchangers, condensers,
condensate containers, thermal
degasers |
| Si 17 E |
red-brown |
hydrophob,
smooth |
200 |
1,44 |
30,13 |
143 |
liquid or gaseous KW, salt
solutions, oils, acid to slightly
alkaline mediums to PH8 |
inside coating of tanks for storage of
flammable liquids, class of risk AI/AII
and B, alphatic hydrocarbon |
| Si 57 E |
red-brown |
hydrophob,
smooth |
200 |
1,16 |
30,10 |
200 |
high alkaline to acid,
all cooling waters incl.
brackish-a, sea-water |
heat exchangers, condensers,
evaporators, vessels,
water treatment plants |
| Si 57 EG |
grey-olive |
matte |
250 |
1,24 |
29,52 |
120 |
water vapour diffusion in
alkaline to low acid liquids |
condensers, condensate
containers, degasers a. boilers |
|
| |
 |
SAEKAPHEN
material
type |
colour |
surface |
dry film thickness
μ |
density
g/㎥ |
solid vol-
ume ltr./
100kg |
hardness
(konig)
lmp./sec. |
resistance |
field of application
|
| HR 60 extra G |
green, red, grey |
smooth,
glossy |
400-500 |
1,50 |
60,3 |
120 |
high alkaline to acid mediums.
brackish, sea, a deionized water as
well as inorganic salt, solutions |
tank, silos, filters, vessels |
| HR 60 extra TG |
red, grey,
red-brown |
matte |
300-350 |
1,40 |
33,1 |
100 |
slightly acid to alkaline aqueous
mediums water to 100℃ a.
water vapour diffusion |
desalization plants, condensation
tanks, process water tanks,
metal pipellines |
| Sakatonit K 80 LS |
red-brown |
satin-
finished |
400-max.800 |
1,40 |
66,4 |
|
acids to high alkaline mediums,
sea-a brackish-water,
cooling water a. salt solutions |
water tanks in power stations, turbine
condensers, heat exchangers, coolers,
evaporationg a. cooling water pipellnes |
| Sakaline |
red-brown,
white |
smooth,
glossy |
mind.700 |
1,55 |
64 |
|
water to 100℃ a. temperature
drop to the surface, temperature
difference up to 80℃ |
boilers a other water heaters for drinking
a. nondrinkable water, KTW recommen-
dation a. all rangs of cold a. heat water |
| Sakaflake 1042 |
black |
matte |
700-3000 |
1,42 |
46,09 |
ca.120 |
aggressive mediums of chemical
industry, high acid ranges
a high temperatures |
flue gas desulfurizing plants,
tanks, pipelines, tanks
vessels, pipes |
| Sakaflake 1052 |
black-grey |
matte |
700-3000 |
1,43 |
|
|
slightly alkaline to high acid mediums,
sea-water, inorganic salt solutions,
fue gas, electrostatic derivation ability |
storage tanks, containers, flue gas
channels, process tanks, washing
towers, gas purifying plants |
| Sakatar D extra |
black,
red-brown |
matte |
mind.500 |
1,5 |
79,5 |
74 |
good chemical resistance,
high temperature load,
higher water vapour diffusion |
power stations, nuclear power
stations, cooling water
pipelines, tanks |
|
| |
| [<<
